The relays used in the Tribute device are made by Western Electric Co. The E and R types are circa early 1930's and retrieved from a dismantled Panel Office in San Francisco Ca.

E and R relays tribute_edited.jpg
icon for info

The U and UB relays below are unused, typically found in a Crossbar type office.

U and UB relays_edited.png

The AJ-9 wire spring relay below is unused and obtained circa 1970.

The wire spring type was extensively used in Crossbar Offices of various kinds and some on-premise business telephone systems such as the 1A1 Key Telephone System (KTS).

WS relay tribute_edited.jpg
E R U UB and WS buttons for interactive demo
Demo select buttons for tribute to telephone relays
Power control for tribute to telephone relays demo device

Various relay closeups in Panel and Crossbar exchanges

E relays from a Panel Telephone Exchange, San Francisco 1930's

E relays in their original frame with cover removed -- from a Panel System, circa early 1930's, San Francisco, Ca

Extreme close-up, 2 R relays in rack -- from a Panel System, circa early 1930's, San Francisco, Ca

Extreme close-up, two R relays in their original frame -- from a Panel System, circa 1930's, San Francisco, Ca

Wire spring relays AF-509 and two AK 30 dual type

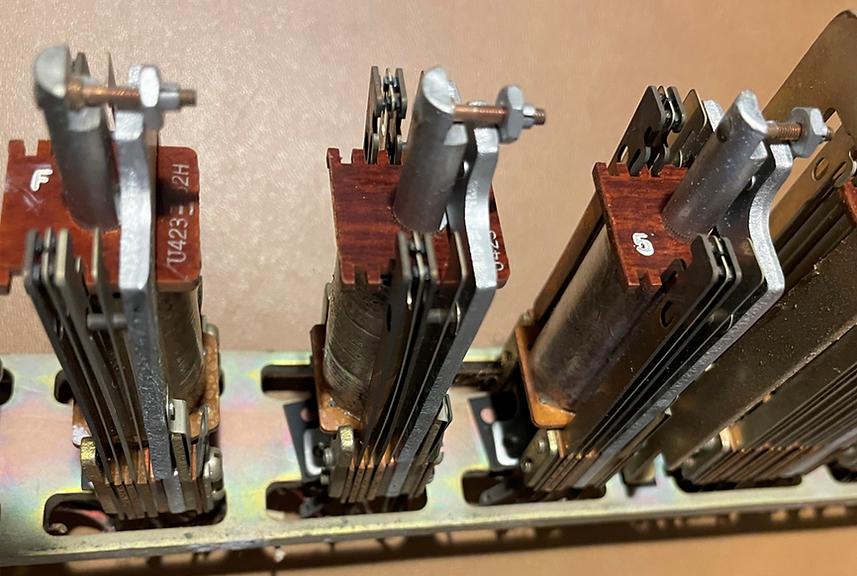

Three U423 relays in their original frame. Removed from a Crossbar exchange, San Francisco, Circa 1960's

Three U423 relays in their original frame. Removed from a #1 Crossbar exchange, San Francisco, Circa 1960's
